MANKIND Libertad 20 Bike gloss smoke red
- Artikel-Nr.: 22MKLI20GSR
Beschreibung
The Mankind Libertad Bike gives you all you need, 100% Chromoly Frame, Fork & Bars and Fully Sealed Front Hubs, Bottom Bracket and Headset. Looking fresh in amazing colors and with it`s chrome bar and cranks theme the Libertad makes you want to go ride right away! Available in 20.5” and XL: 21.0” Top Tube versions, making it easy for you to find the size you need. You can´t always get what you want, but here you get what you need!
Key features:
100% Chromoly Frame, Fork & Bars
Mankind Advance Alloy Stem NEW
Mankind Control Sealed Front Hub Female
Mankind Control Sealed Cassette Hub
Shadow Strada Nuova LP Tires 2.3”
Mankind Control Mid Pivotal Seat debossed
Geometry:
Top Tube Length: 20,5“, XL: 21.0“
Chain Stay Length: 13.25"
Head Tube Angle: 75.0°
Stand Over Height: 9.0″
Bar Height: 8.9"
Fork Offset: 28mm
Weight: 11.7 kg / 25.79 lbs for Libertad
Colors: Gloss Smoke Red, Semi Matte Trans Gold, XL: Gloss Black
FRAME 100% Chromoly Frame - MK SS Bridge– TT & DT Gusset
TOP TUBE 20.5” – XL: 21.0”
CHAIN STAY 13.25”
HEAD TUBE 75°
SEAT TUBE 71°
BB HEIGHT 11.75”
STAND OVER 9.0”
BRAKE MOUNTS Removable Brake Mounts & Cable Stopper
FORK 100% Chromoly - 1-PC Steerer, Tapered Legs, 28mm offset
BARS 100% Chromoly - 8.9” Rise, Back: 12°/ Up: 2°, Width: 29.0”
GRIPS Mankind Control Grips
BAR ENDS Mankind Nylon

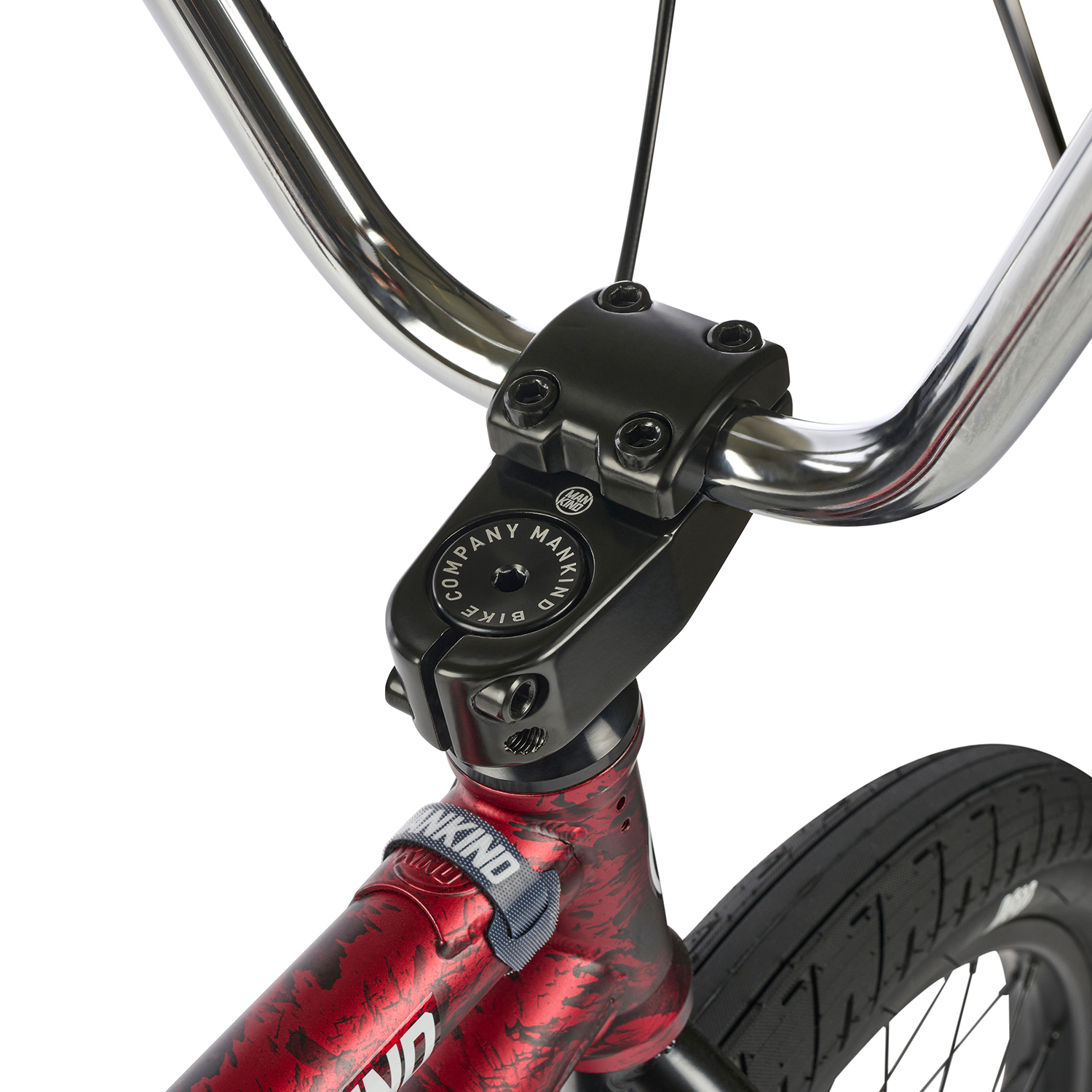

STEM Mankind Advance Stem - Alloy - 50mm reach
HEADSET Mankind Control Sealed Integrated
BRAKE Alloy U-brake
BRAKE LEVER Alloy Lever - 2-Finger Design - Hinged
REAR HUB Mankind Control Cassette Hub – Sealed - 14mm axle - 9t Driver
FRONT HUB Mankind Control Sealed - Female Axle

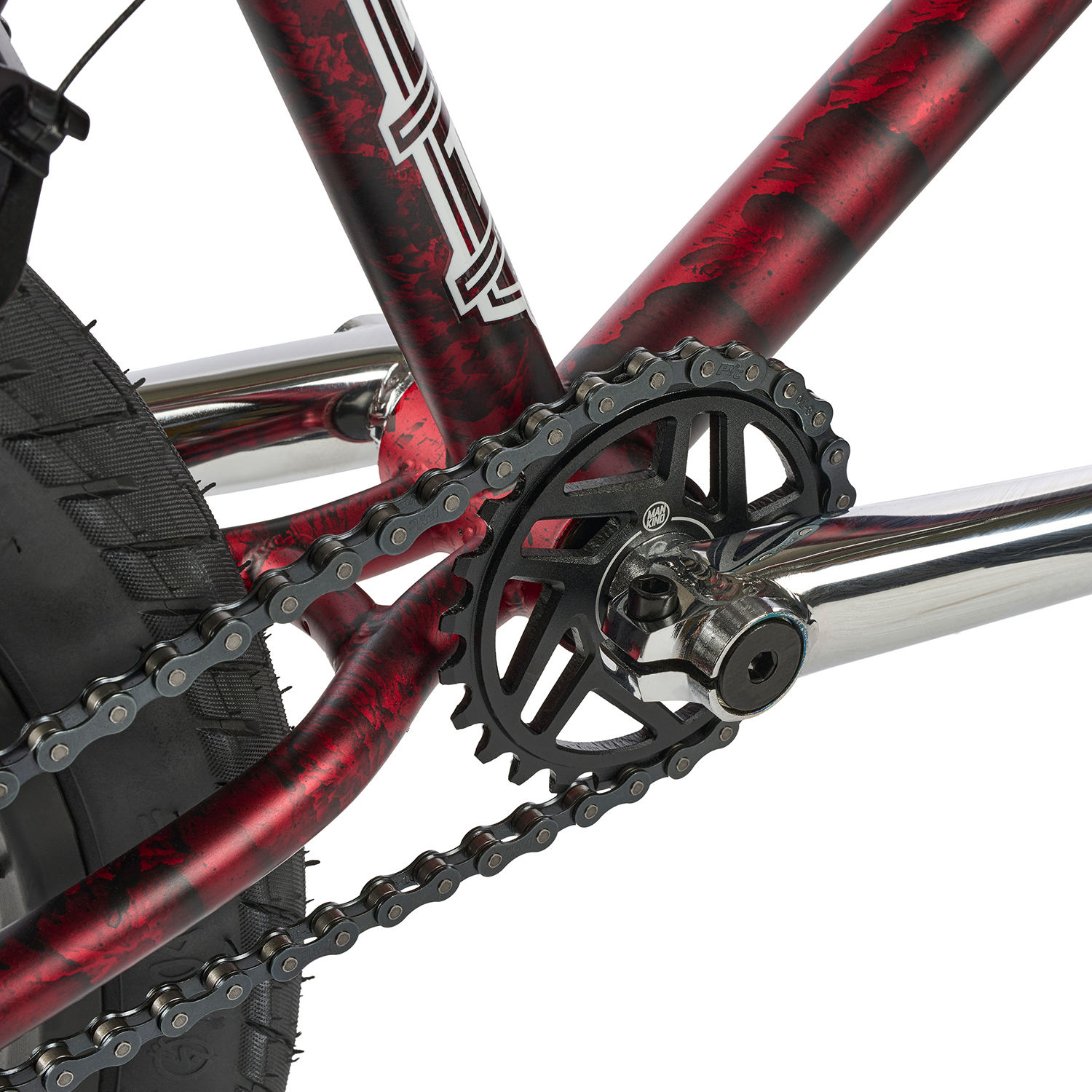

SPROCKET Mankind Control Alloy 25t
CRANKS Chromoly – 8 Spline - 3-Piece - 170mm - 19mm
BOTTOM BRACKET Mid BB Sealed - 19mm
CHAIN PYC 410 - black
PEDALS Mankind Control Plastic
FRONT RIM Alloy - Double Wall 36H
REAR RIM Alloy - Double Wall 36H
SPOKES Steel Spokes – 14mm nipples - black
FRONT TIRE Shadow Strada Nuova LP 2.30”
REAR TIRE Shadow Strada Nuova LP 2.30”
PEGS None
SEAT Mankind Control Mid Seat/Post Combo debossed
SEAT POST Seat/Post Combo
SEAT POST CLAMP Integrated
COLORS Gloss Smoke Red, Semi Matte Trans Gold, XL: Gloss Black
WEIGHT 11,70 kg
